AL-5-4″-24 – Belt Grinder Wheel Set / Knife Grinder 5″/129mm Drive – 24mm shaft, 4″/102mm Tracking, 2″/51mm Idle

Original price was: 406,08 zł.Current price is: 336,96 zł. Excluding tax (or VAT)

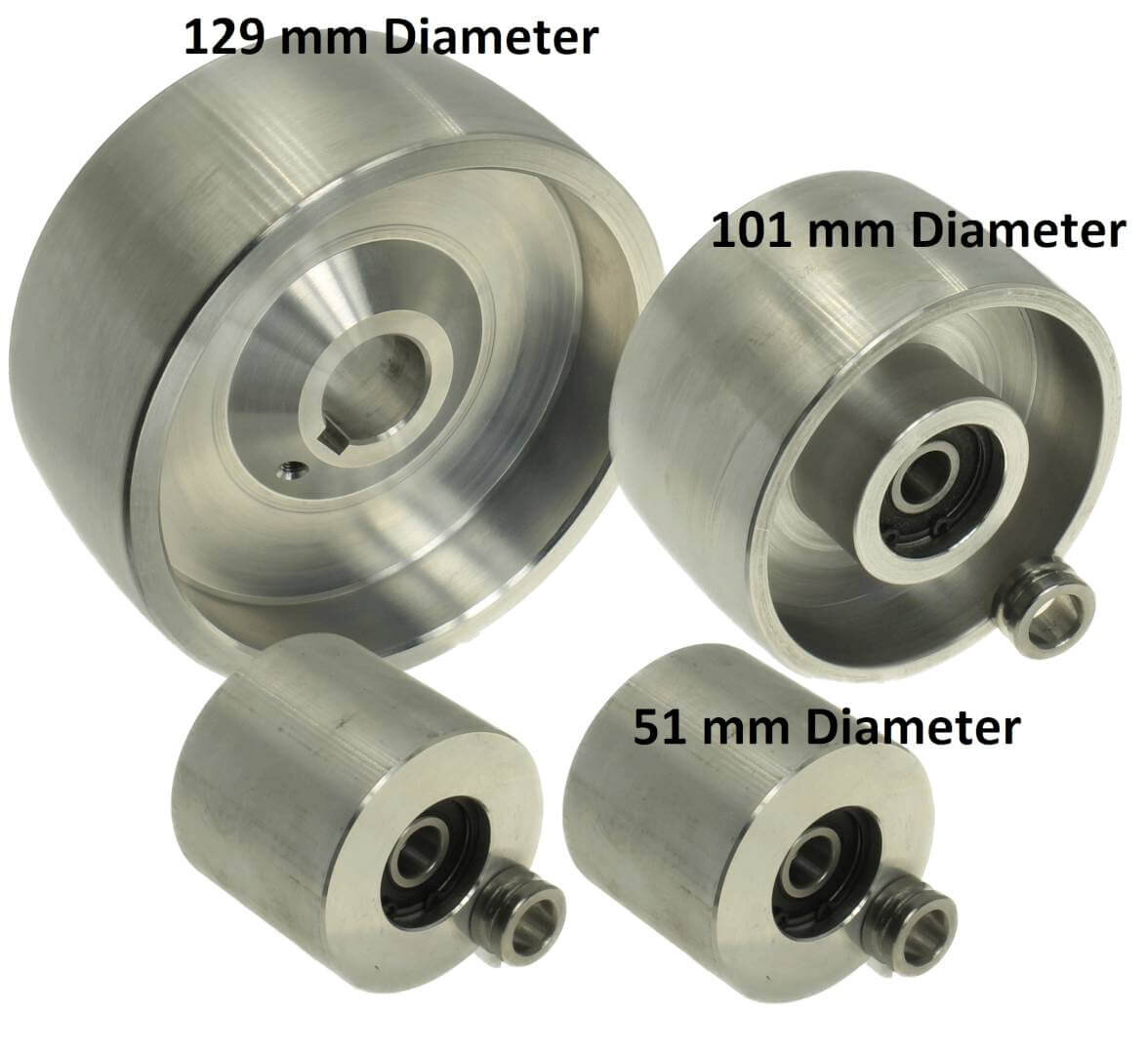

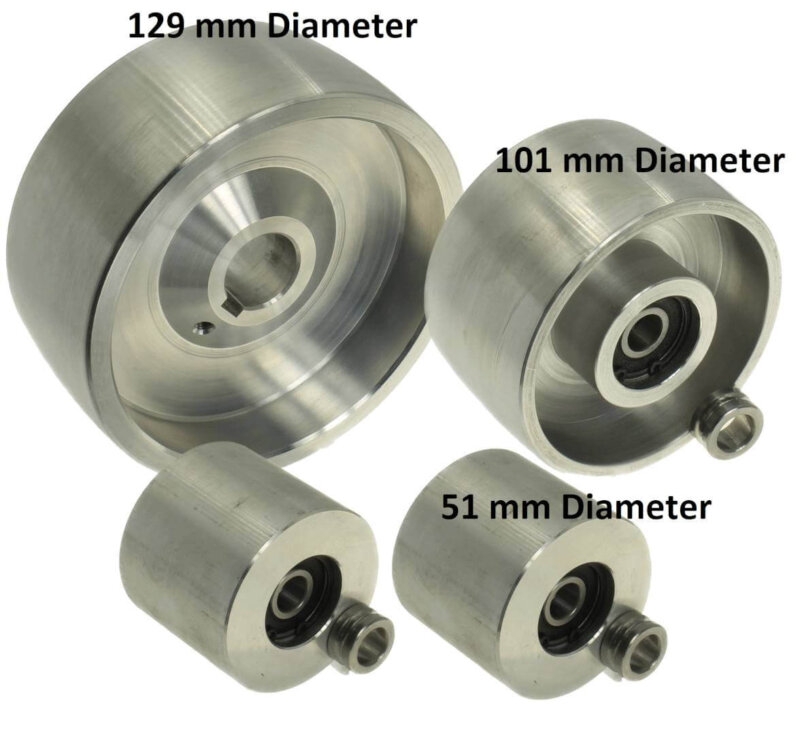

  • Drive Wheel: 5″/129 mm /24 mm bore
  • Tracking Wheel: 4″/102 mm
  • Idler Wheel: 2″/51 mm

Description

Belt Grinder wheel set knife grinder 5.1 “Drive 24 mm shaft 3” tracking, 2 “Idler

Wheel Set Description

Set includes:

  • Tracking Wheel Bracket
  • One x 129 mm (5.1 “) diameter drive wheel:

D drive wheel is CNC machined with 24 mm bore (H7 tolerance). Bore is equipped with an 8 mm key way and a set screw. Wheel is 55 mm wide (2.2 “). Bore is 40 mm long (1.6”). Surface of wheel is truly crowned to insure belt won’t jump off wheel. Please refer to the wheel’s sketch for the exact wheel dimensions

  • Two  x 51 mm diameter idler wheels:

Each wheel is CNC machined and fitted with  three  12 mm bearings. (Heavy duty 6201 RS bearings) Bearings are rubber sealed to protect from dust. Bearings are placed back to back (best combination). 10 mm wide standoff (sleeve) will raise the wheel of the mounting plate. This bearing combination is the best tested solution against bearing failure as it allow for tightening the mounting bolts without causing any axial force on the bearings  (ball bearings should not bear lateral load)

  • One  x 102 mm diameter tracking wheel:

Each wheel is  CNC machined and  fitted with  three  12 mm bearings. (Heavy duty 6201 RS bearings) Bearings are rubber sealed to protect from dust. Bearings are placed back to back (best combination). 10 mm wide standoff (sleeve) will raise the wheel of the mounting plate. This bearing combination is the best tested solution against bearing failure as it allow for tightening the mounting bolts without causing any axial force on the bearings  (ball bearings should not bear lateral load)

Shipping

We understand that customers would like to receive their purchase as soon as possible. Therefore I provide postage service that is comparable -in speed- to local postal service. And to achieve that:

  • All orders are shipped using FedEx Economy/Priority or GLS Ground
  • All order are shipped the same working day if paid by 3 PM central European time
  • From experience, in most cases; Items arrive in 2-6 work days to all EU countries
  • From experience, in most cases; Items arrive in 3-10 work days to North America
  • From experience, in most cases; Items arrive in 5-15 work days to Australia and New Zealand

Limitation of liability

In no event shall pulley-wheel be liable for any direct, indirect, punitive, incidental, special consequential damages, to property or life, whatsoever arising out of or connected with the use or misuse of its products.

Additional information

Weight 2,5 kg
