Description

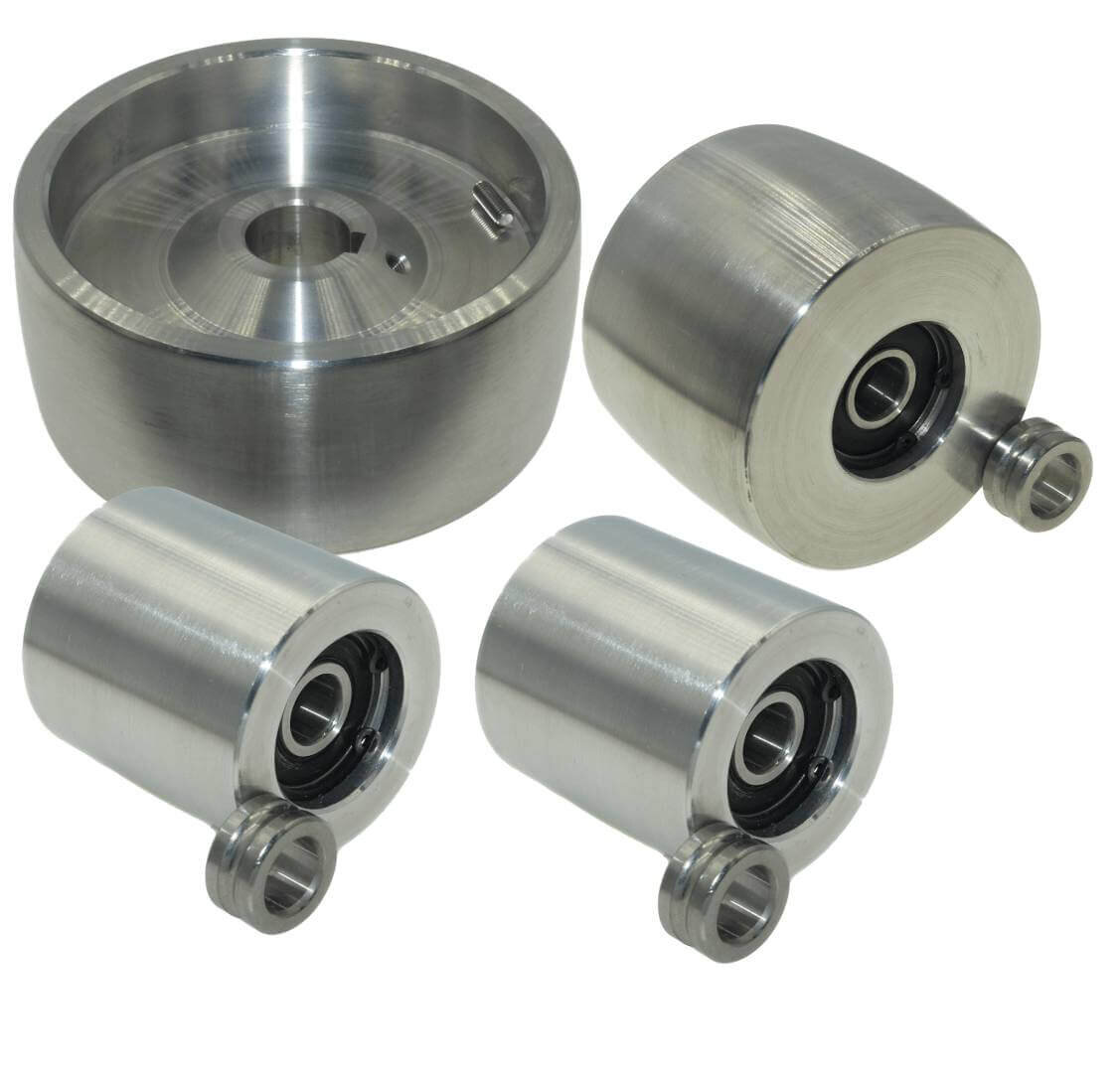

🎡 Belt Grinder Wheel Set – 5″ Drive(24 mm drive), 3″ Tracking, 2″ Idlers

Complete CNC-machined wheel set for 2×72 / 50×2000 belt grinders.

🔧 Set Includes

• 1 × 128 mm (5″) drive wheel

• 1 × 75 mm (3″) tracking wheel

• 2 × 51 mm (2″) idler wheels

⚙️ Drive Wheel (128 mm / 5″)

• Precision CNC-machined

• 24 mm bore (H7 tolerance)

• Bore length: 40 mm (1.6″)

• Equipped with:

  • 8 mm keyway

  • Set screw

• Wheel width: 55 mm (2.2″)

• Crowned surface for stable belt tracking

• Manufactured to tight tolerances for smooth operation

🎡 Idler Wheels (51 mm / 2″)

• Precision CNC-machined

• Each wheel fitted with three heavy-duty 6201-RS bearings

  • Bearings are rubber sealed for dust protection

  • Bearings arranged back-to-back → optimal load distribution

• Includes 10 mm standoff sleeve to raise the wheel off the mounting plate

• Designed to eliminate axial load on the bearings, preventing early failure

🎯 Tracking Wheel (75 mm / 3″)

• Precision CNC-machined

• Fitted with three heavy-duty 6201-RS bearings

• Rubber-sealed bearings for protection against metal dust

• Back-to-back bearing configuration for long life

• 10 mm standoff sleeve included

• Highly stable and responsive tracking performance

📦 Shipping

Fast, reliable international delivery

• Shipped with FedEx Economy/Priority or GLS Ground

• Orders placed before 15:00 CET ship the same working day

• Typical delivery times:

  • EU: 2–6 business days

  • North America: 3–10 business days

  • Australia & New Zealand: 5–15 business days

⚠️ Limitation of Liability

Pulley-Wheel is not liable for any direct, indirect, incidental, punitive, or consequential damages to property or life resulting from the use or misuse of its equipment.
