AL-5-19 – Belt Grinder Wheel Set / Knife Grinder 5″/129mm Drive – 19mm shaft, 3″/76mm Tracking, 2″/51mm Idler

Original price was: 362,88 zł.Current price is: 302,40 zł. Excluding tax (or VAT)

  • Drive Wheel: 5″/129 mm /19 mm bore
  • Tracking Wheel: 3″/76 mm
  • Idler Wheel: 2″/51 mm

Description

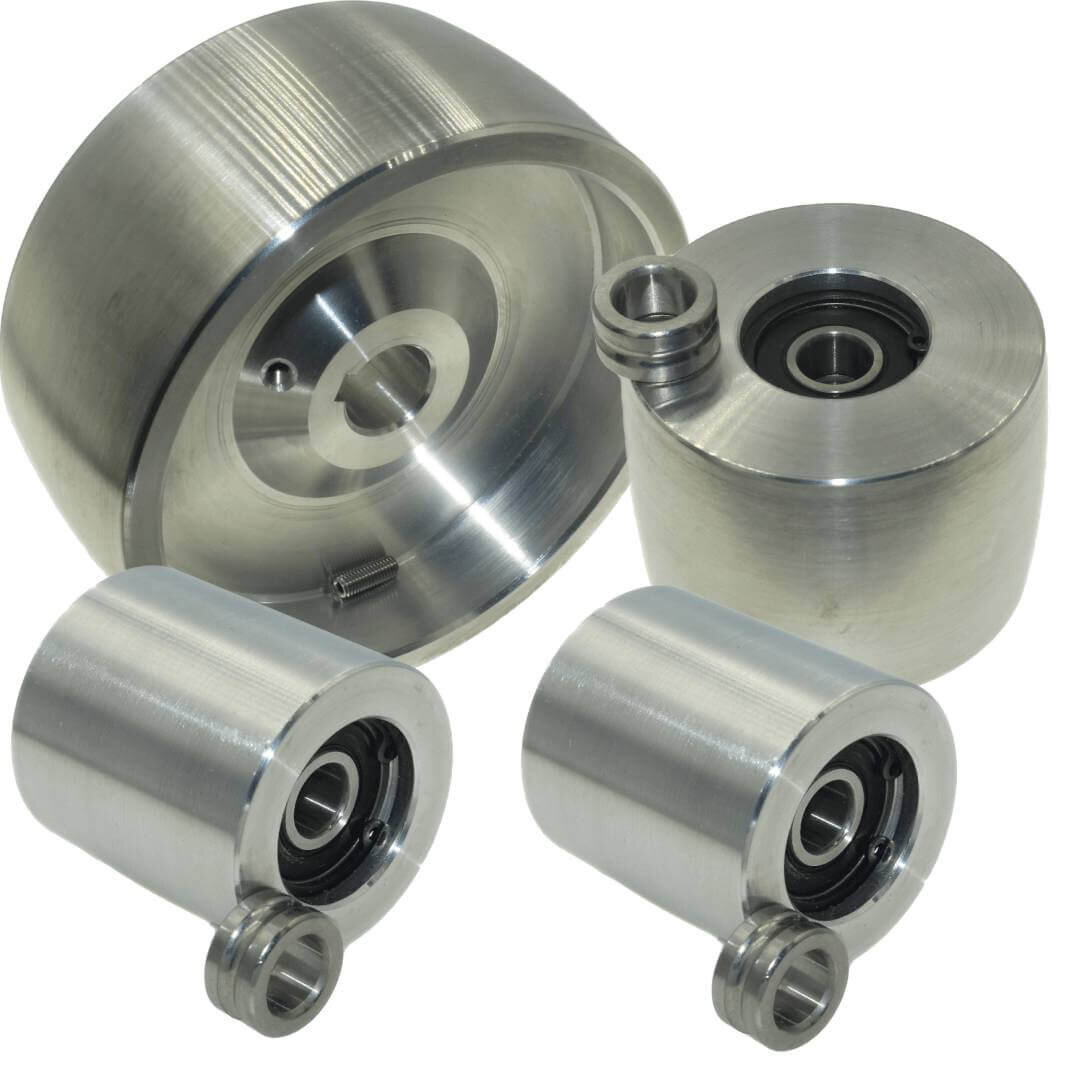

Set Includes:

Tracking Wheel Bracket

One 129 mm diameter Drive Wheel:
Drive wheel is CNC machined with 19 mm bore (H7 tolerance). Bore is equipped with a 6 mm key way and a M5x16 mm set screw. Surface of wheel is truly crowned to insure belt won’t jump off wheel . Please refer to the wheel’s sketch for the exact wheel dimensions

Two x 51 mm diameter Idler Wheels:
Each wheel is fitted with three 12 mm bearings. (Heavy duty 6201 RS bearings) Bearings are rubber sealed to protect from dust. Bearings are placed back to back (best combination). A 10 mm wide standoff (sleeve) will raise the wheel of the mounting plate. This bearing combination is the best tested solution against bearing failure as it allow for tightening the mounting bolts without causing any axial force on the bearings (ball bearings should not bear lateral load)

One 75 mm diameter Track Wheel:
Each wheel is fitted with three 12 mm bearings. (Heavy duty 6201 RS bearings) Bearings are rubber sealed to protect from dust. Bearings are placed back to back (best combination). A 10 mm wide standoff (sleeve) will raise the wheel of the mounting plate. This bearing combination is the best tested solution against bearing failure as it allow for tightening the mounting bolts without causing any axial force on the bearings (ball bearings should not bear lateral load)

Shipping

We understand that customers would like to receive their purchase as soon as possible. Therefore I provide postage service that is comparable -in speed- to local postal service. And to achieve that:

  • All orders are shipped using GLS or FedEx (Depending on Destination)
  • All order are shipped the same working day if paid by 3 PM central European time
  • From experience, in most cases; Items arrive in 3-6 work days to all EU countries
  • From experience, in most cases; Items arrive in 7-10 work days to North America and Australia



Limitation of Liability

In no event shall pulley-wheel be liable for any direct, indirect, punitive, incidental, special consequential damages, to property or life, whatsoever arising out of or connected with the use or misuse of its products.

Additional information

Weight 2 kg
